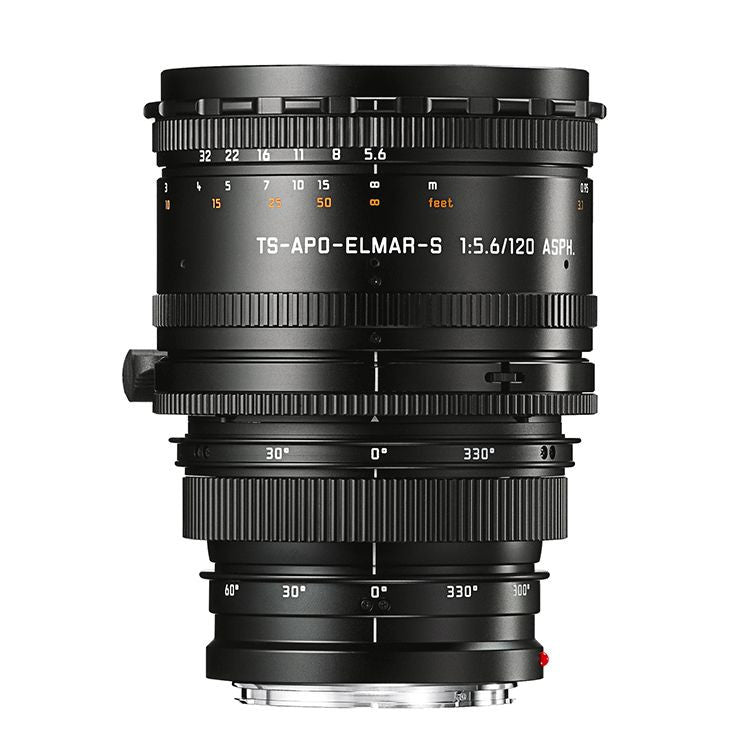

Leica TS-APO-Elmar-S 120mm f/5.6 ASPH

SKU: 799429110796   Mfg Code: 11079

$7,695

Out of Stock

  • Perspective Control

    Similar to the movements of a view camera, the Leica TS-APO-ELMAR-S 120mm f5.6 ASPH., gives the photographer complete control over the perspective and the focal plane. The lens is characterized by an image circle increased by 153mm, which means that the lens can be shifted by up to 12 mm from the optical axis in any direction. This allows the user to change the view without changing the perspective, thus supporting, for example, product shots without irritating converging lines.

    Independent of the shift, you can tilt the lens by up to 8° in any direction, thus tilting the focal plane in line with Scheimpflug's principle.

    The exterior of the Leica TS-APO-Elmar-S 120mm f5.6 ASPH. is different from that of other S lenses, due to its special design as a tilt/shift lens. The lens has a total of four rings for tilt and shift, one turn-and-slide ring each for adjusting the tilt and shift directions, and one ring each for adjusting the tilt and swing respectively. It additionally features a tripod plate with a 1/4" and a 3/8" thread, which allows the user to fix the lens in any orientation thanks to the rotating clamp and clamping screw.

    The lens's large image circle simultaneously supports a shift of up to 12 mm and a tilt of up to 8°. Both the tilt and the shift mechanisms rotate through 360°, so that the respective adjustments can be made in any direction and independently of one other.
  • Lens Tilt/shift telephoto lens with superior imaging quality for Leica S-Cameras
    Compatible cameras All Leica S-Models
    Angle of view lens in neutral setting ~23,6°, 20°, 13,6° (diagonal, horizontal, vertical), equivalent to ~96 mm focal length in 35 mm format
    Optical Design
    Number of lenses / groups 6 / 4, 1 Aspherical surface
     Position of entrance pupil 65.6 mm
    Shift / tilt Displacement Max. 12 mm / .5 inches, in all directions
    Tilt angle Max. 8°, in all directions
    Focusing Working range 0.92 m ( 3 ft) to infinity
    Scales Combined meter / feet graduation
    Smallest object field ~159 x 239 mm
    Largest reproduction ratio 1 : 5.3
    Aperture Setting / function Manual presetting, setting and open/close with separate rings, one-third values selectable
    Smallest aperture value 32
    Bayonet Leica S quick-change bayonet
    Filter mount Inner threaded mount for E95 filters, non-rotating filter mount
    Finish Black anodized
    Overall length to bayonet flange ~144 mm / 5.7 inches
    Maximum diameter ~108/57.7 mm / 4.25/2.27 inches with/without tripod plate
    Weight ~1110 g / 2.45 lb
