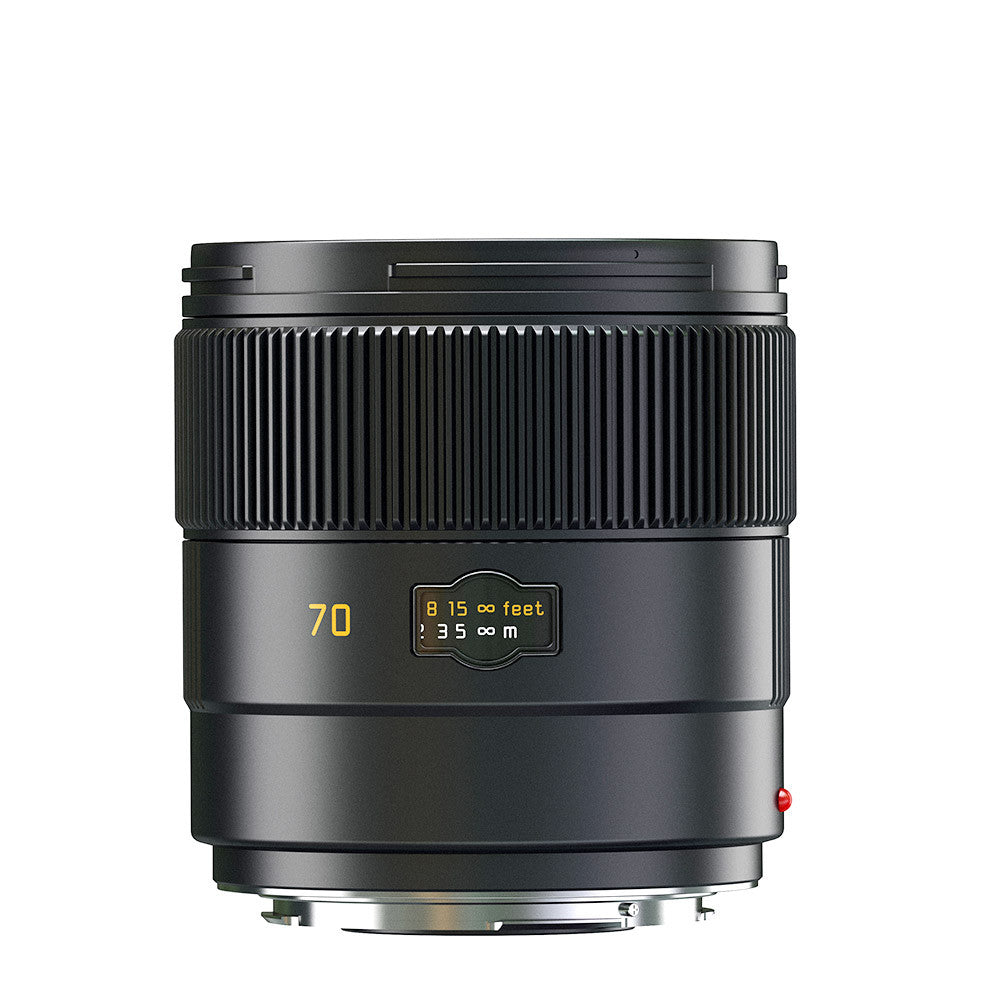

Leica Summarit-S 70mm f/2.5 ASPH CS

SKU: 799429110512   Mfg Code: 11051

$6,495

No Longer Available

See recommended accessories
  • The high performance standard lens

    The Summarit-S 70 mm f/2.5 ASPH. plays the role of the standard lens in the Leica S-System lens-portfolio, and has a focal length corresponding to 56 mm in 35 mm format. In order to ensure its universal versatility, the Leica design engineers invested immense effort to guarantee superior image performance at maximum aperture and at all focusing distances.

    One of the eight lenses arranged in six groups features an aspherical surface, to minimize aberration effects.The two cemented elements are manufactured from glass with high anomalous partial dispersion, minimizing the effect of chromatic aberrations. In addition, glasses with very high refractive indices work together with the aspherical element to almost completely eliminate monochromatic aberration effects. In order to achieve perfect image performance from infinity to its minimum focusing distance of just 50 cm (~1.6 ft), the last two lenses are constructed as a floating element that moves independently from the rest of the optical system when focusing. The Leica Summarit-S 70 mm f/2.5 ASPH. is ideally protected against water droplets and dust and features a protective neutral glass filter that is included as a parameter in its optical design.

    The reward for the immense effort invested in its design and construction is a lens with extraordinarily good contrast performance wide open and at all other apertures that, even at its closest focusing distances, can be only marginally improved in the extreme corners of images by stopping down. With a value of only 1.2%, distortion remains imperceptible, and maximum vignetting of 1.4 stops at maximum aperture is so extremely low, ensuring that the Leica Summarit-S 70 mm f/2.5 ASPH. delivers consistently dependable and superior image performance at all apertures and distances.

    This is the CS version of the lens, which has a central shutter, also known as a leaf shutter, built-in. The central shutter allows the S camera to sync with a flash unit at any shutter speed up to and including 1/1000th of a second. This provides the photographer with exceptional control when balancing ambient and strobe lighting.

  • Image angle approx. 42° / 35° / 24°(diagonal, horizontal, vertical), corresponds to approx. 56 mm focal length in 35 mm format
    Optical design
    Number of lenses / groups 8 / 6
    Position of entrance pupil 26,7 mm
    Focusing range 0,5 m to 8
    Scales Combined meter/feet graduation
    Smallest object field 142 mm × 212 mm
    Largest reproduction ratio 1 : 4,7
    Aperture
    Setting / Function Electronically controlled diaphragm, set using setting/ selection dial on camera, including half values
    Lowest value 22
    Central shutter Built-in shutter mechanism range: 125 secs to 1/1000th of a sec Flash sync at all speeds
    Bayonet Leica S bayonet
    Filter mount / Lens hood External bayonet for lens hood (included), internal thread for E82 filter, filter mount does not rotate
    Length to bayonet mount approx. 93 / 151 mm (without / with lens hood)
    Largest diameter approx. 90 / 117 mm (without / with lens hood)
    Weight approx. 740 / 890 g (without / with central shutter)
