• This was the first apochromatically corrected lens to be introduced commercially for the Leica system. It was based on one of the series of lenses designed in the late 1960's by Dr. Walter Mandler at Midland, Canada to meet a requirement by the U.S. Navy for a high resolution camera system based on the Leicaflex SL. According to Lager there were three special apochromatic Elcan-R lenses produced for this contract: 75mm, 180mm, and 450mm. The 180mm is a telephoto design with seven elements with six of them in cemented pairs.  The design relies on Leitz High refractive index and low dispersion glasses.  The long slim barrel with built in extensible lens hood balances well on the camera body.  The filter size was changed from series 7.5 to E60 about 1980, but earlier lenses up to No. 2,947,024 can be converted to E55.  Lens manufactured between 1975 to 1997. This lens can be fitted with electronics for Leica R8.

  Features of the 180mm APO-Telyt-R

  • Minimum focus 2.5 M
  • Filter size E60
  • Number lens/groups 7/4
  • Pull out lens hood
  • Can be outfitted with electronics
  • Length 135 mm
  • Weight 750 g

  Item Specifics

  Leica product code 11242

  S/N 3523867

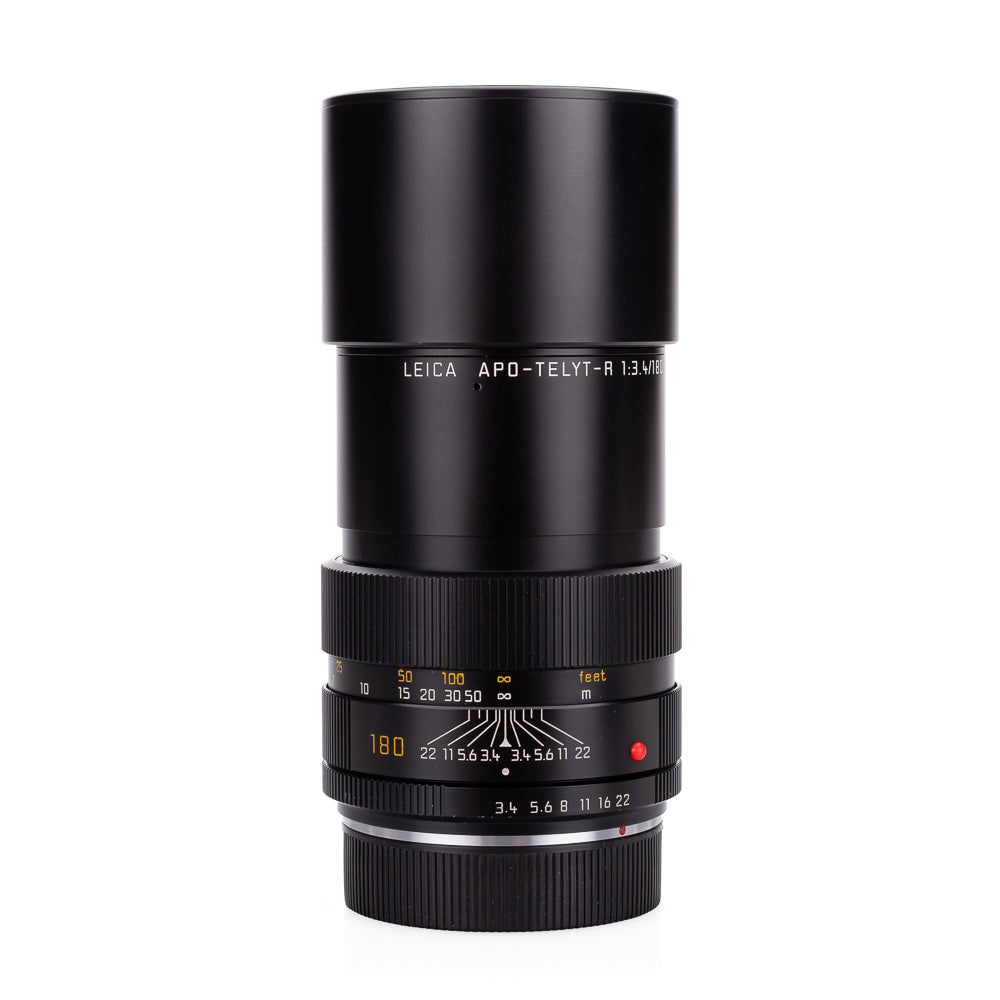

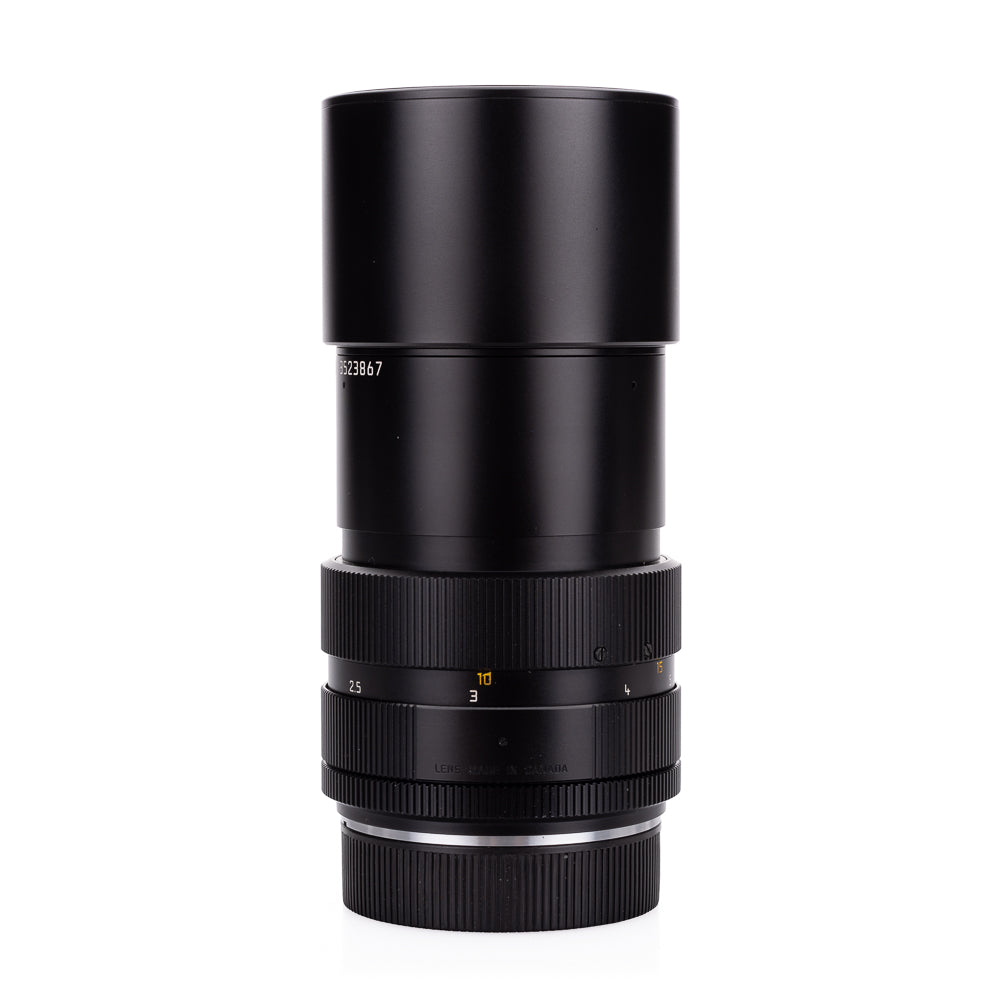

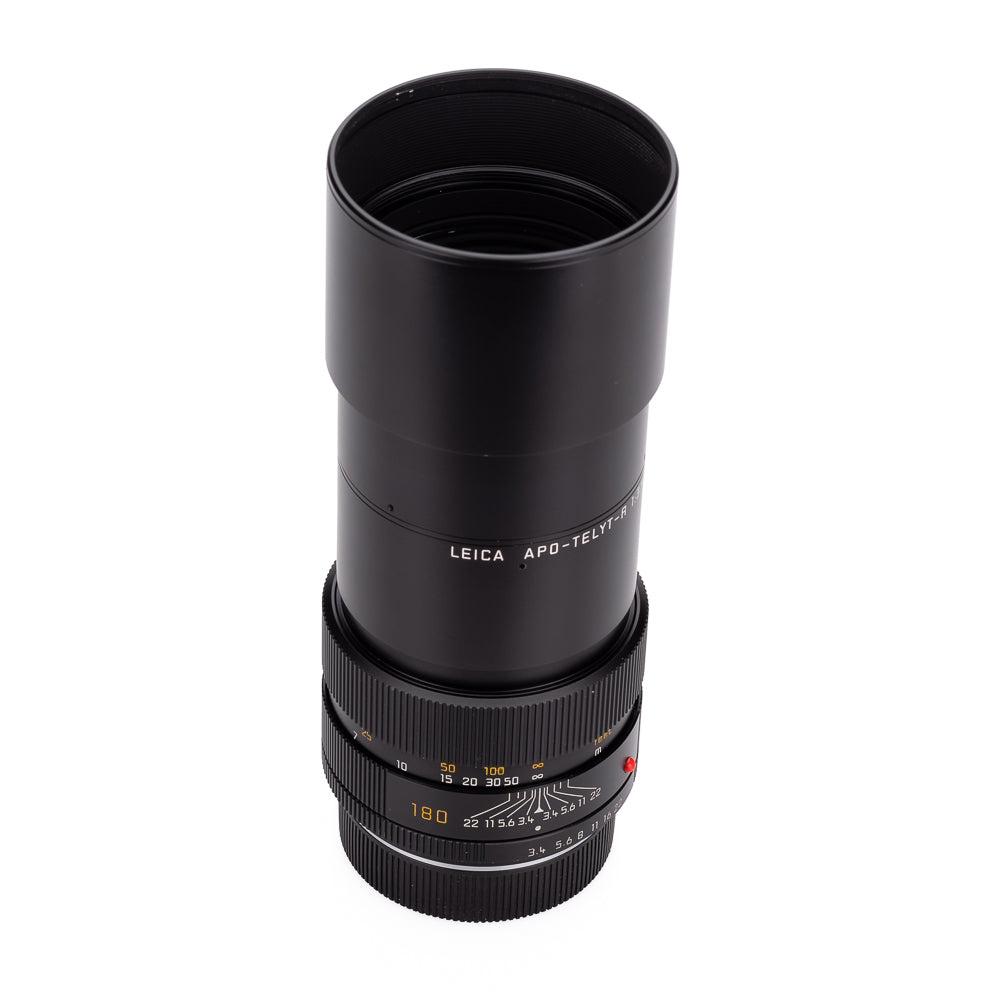

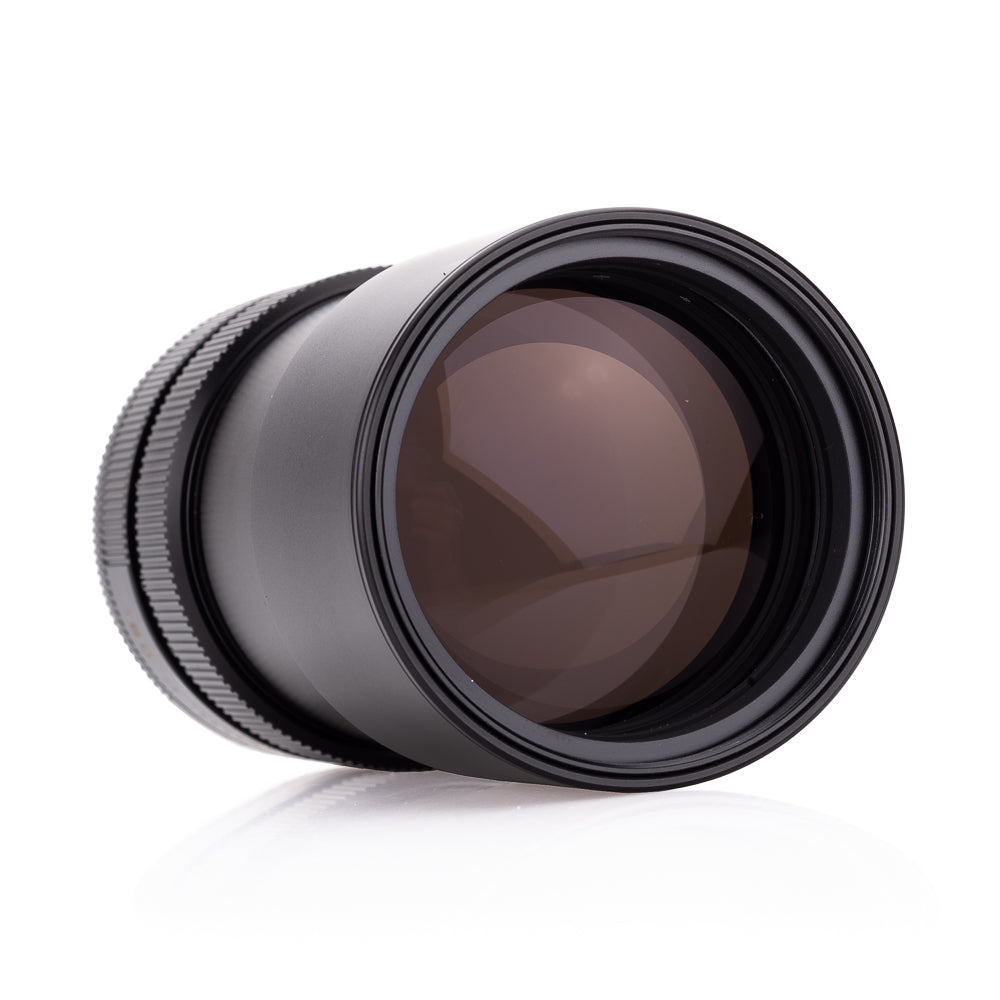

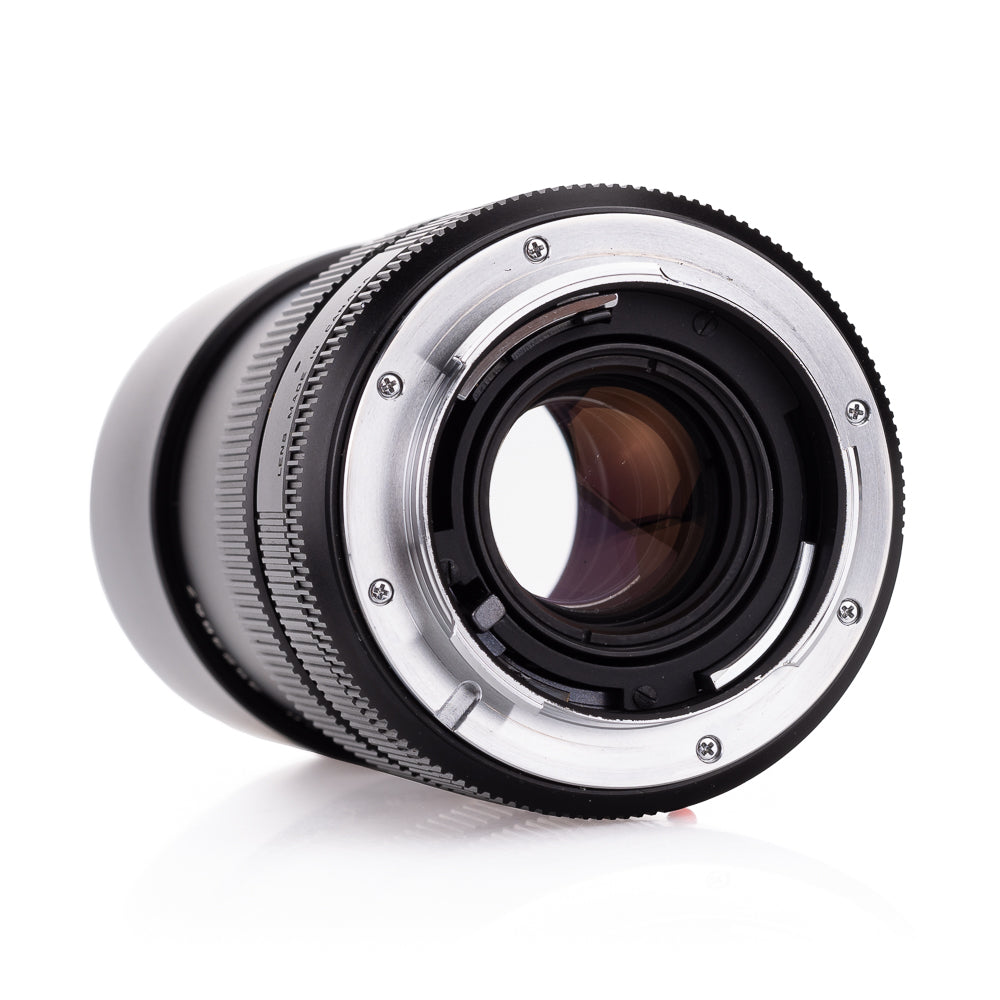

  With a production range from 1975 to 1997, this particular lens was manufactured in 1990. The variant of this lens is the 3-cam E60 version. The lens is very clean and shows no signs of excessive use. The focus has smooth drag. The aperture has nice positive detents. The glass is clear and free from haze, fungus and scratches. Overall this lens is in great condition.

  Service has been completed recently by DAG Camera. The work performed was to clean, lubricate, and adjust all parts for proper working order.

  Item Includes

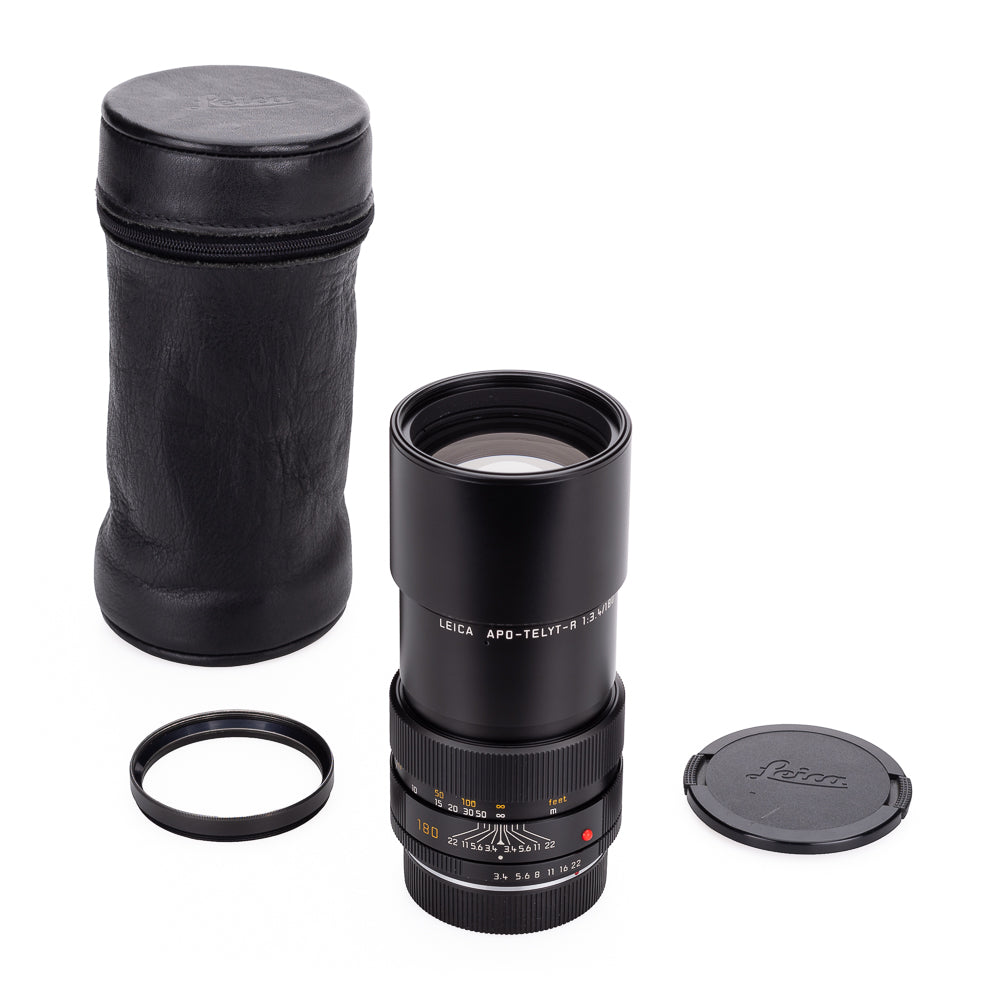

  The 180mm APO-Telyt-R lens with the front and rear protective caps and lens pouch.

  Warranty

  Leica Store Miami 30-Day Used Warranty, Plus DAG Camera 6-month CLA warranty

  Read more...

• Leica product code 11242

  S/N 3523867

  With a production range from 1975 to 1997, this particular lens was manufactured in 1990. The variant of this lens is the 3-cam E60 version. The lens is very clean and shows no signs of excessive use. The focus has smooth drag. The aperture has nice positive detents. The glass is clear and free from haze, fungus and scratches. Overall this lens is in great condition.

  Service has been completed recently by DAG Camera. The work performed was to clean, lubricate, and adjust all parts for proper working order.

  Property	Value
  Focal Length	180mm
  Max Aperture	f/3.4
  Min Aperture	f/22
  Optical Formula	7 elements / 4 groups
  APO Correction	Yes — apochromatic (true APO)
  Min Focus Distance	1.5m (4.92 ft)
  Max Magnification	1:7.5
  Filter Thread	E60 (60mm)
  Aperture Blades	8
  Weight	~710g (1.57 lbs)
  Length	~134mm
  Barrel Material	Metal
  Mount	Leica R – 3-CAM

• The 180mm APO-Telyt-R lens with the front and rear protective caps and lens pouch.

• Leica Store Miami 30-Day Used Warranty, Plus DAG Camera 6-month CLA warranty

* Please note that all the photos in this listing are of the actual item for sale and not stock photos
