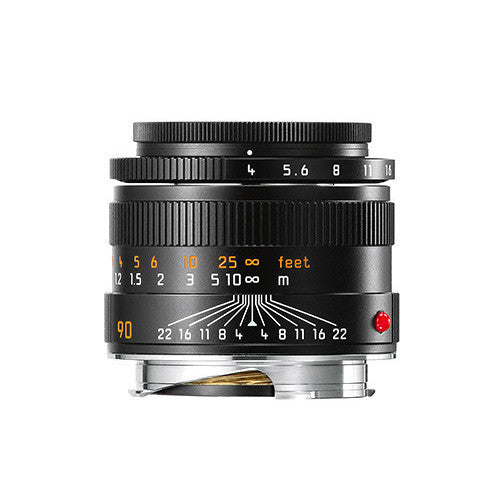

Leica Macro-Elmar-M 90mm f/4

SKU: 799429116701   Mfg Code: 11670


In Stock

See recommended accessories
  • The Macro-Elmar-M 90 mm f/4 can be used as a compact 90 mm telephoto lens or, in combination with the Leica Macro-Adapter-M, for macro shots up to a magnification of 1:2. Either way, the lens provides an incredibly high imaging performance.

    Without the adapter, the Leica Macro-Elmar-M 90 mm f/4 is an extremely versatile telephoto lens – for example, for portraits with shallow depth of field and in travel photography for capturing details in landscapes. For reportage photography, the Leica Macro-Elmar-M 90 mm f/4 allows photographers to capture discreet shots at a greater distance from the subjects. The Leica Macro-Elmar-M 90 mm f/4 is a compact and lightweight alternative to existing Leica M-Lenses of this focal length. When not in use, the lens can be collapsed to save valuable space in the camera bag.

  • Angle of view (diagonal, horizontal, vertical)
     27° / 23° / 15° (M8: 20° / 17° /11°)
    Optical design
    Number of lenses/groups 4 / 4
    Focal length 90.0 mm
    Position of entrance pupil (from bayonet flange)
    22 mm
    Focusing range 0,8 m to ∞
    Distance setting
    Scales Combined meter/feet graduation
    Smallest object field 169 x 244 mm (Adapter 72 x 108 mm) M8:122 x 183 mm (Adapter: 36 x 54 mm)
    Largest reproduction ratio  approx. 1:6,7
    Setting/Function prefix with click-stops, half steps, click-stop
    Lowest value 22
    Bayonet Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models
    Filter mount internal thread for screw-in type filters E39, non-rotating lens mount
    Lens hood separate metal lens hood, can be attached in reverse for storage
    Dimension and weight
    Length 59 mm (lens extended, in working position), 41 mm (lens collapsed, in storage position)
    Largest diameter 52 mm
    Weight Weight: approx. 230 g (black anodized aluminium version)
