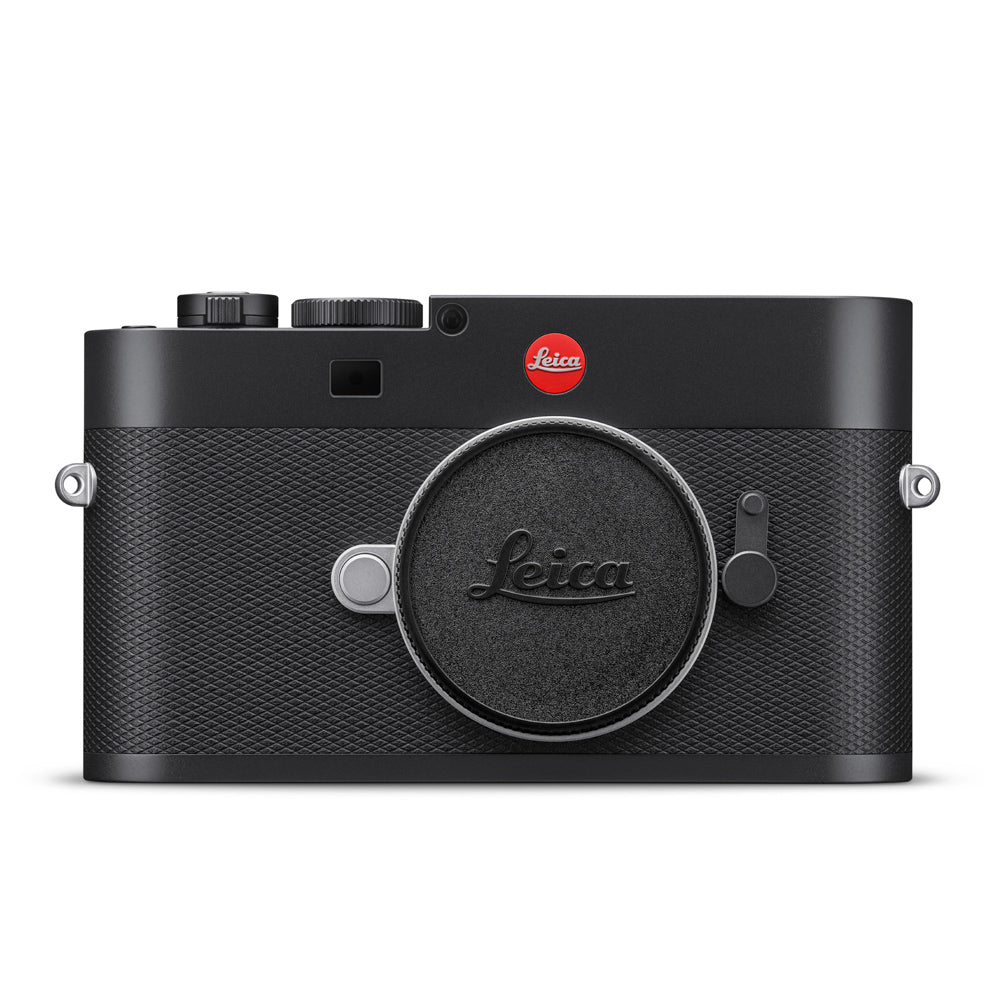

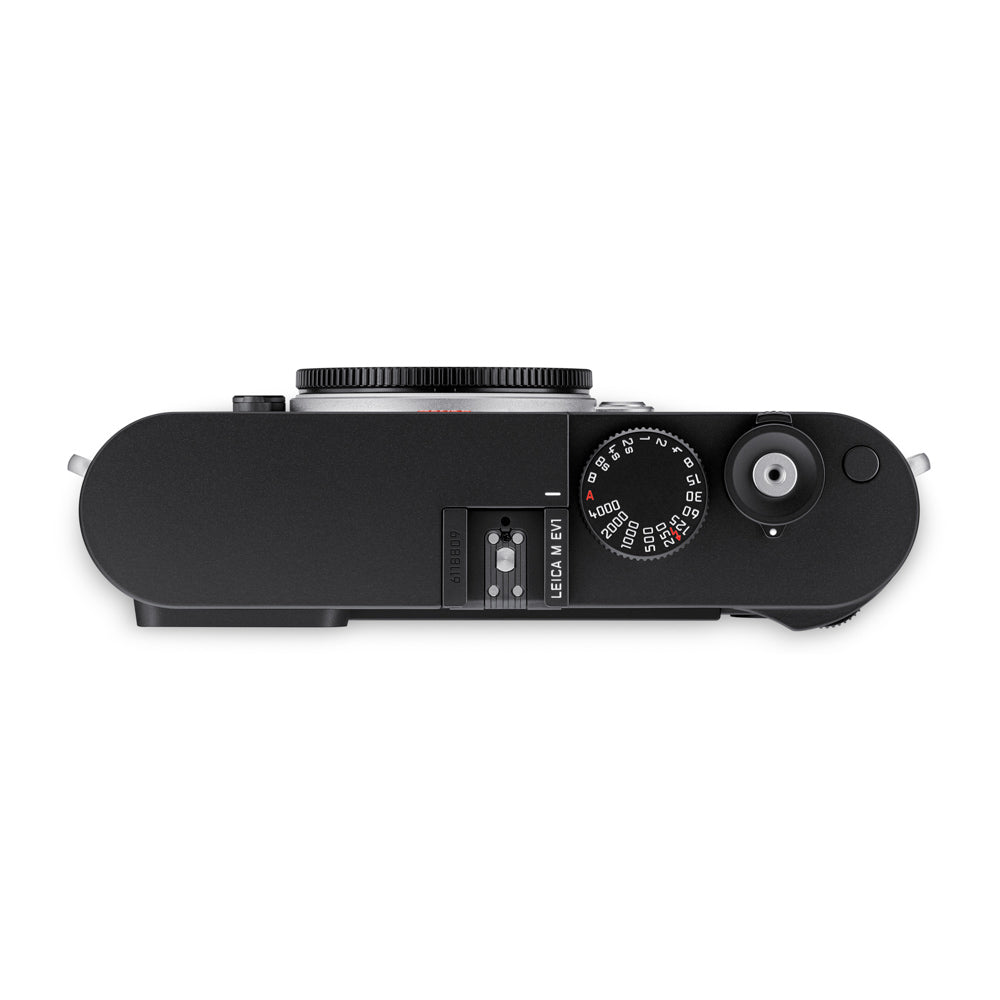

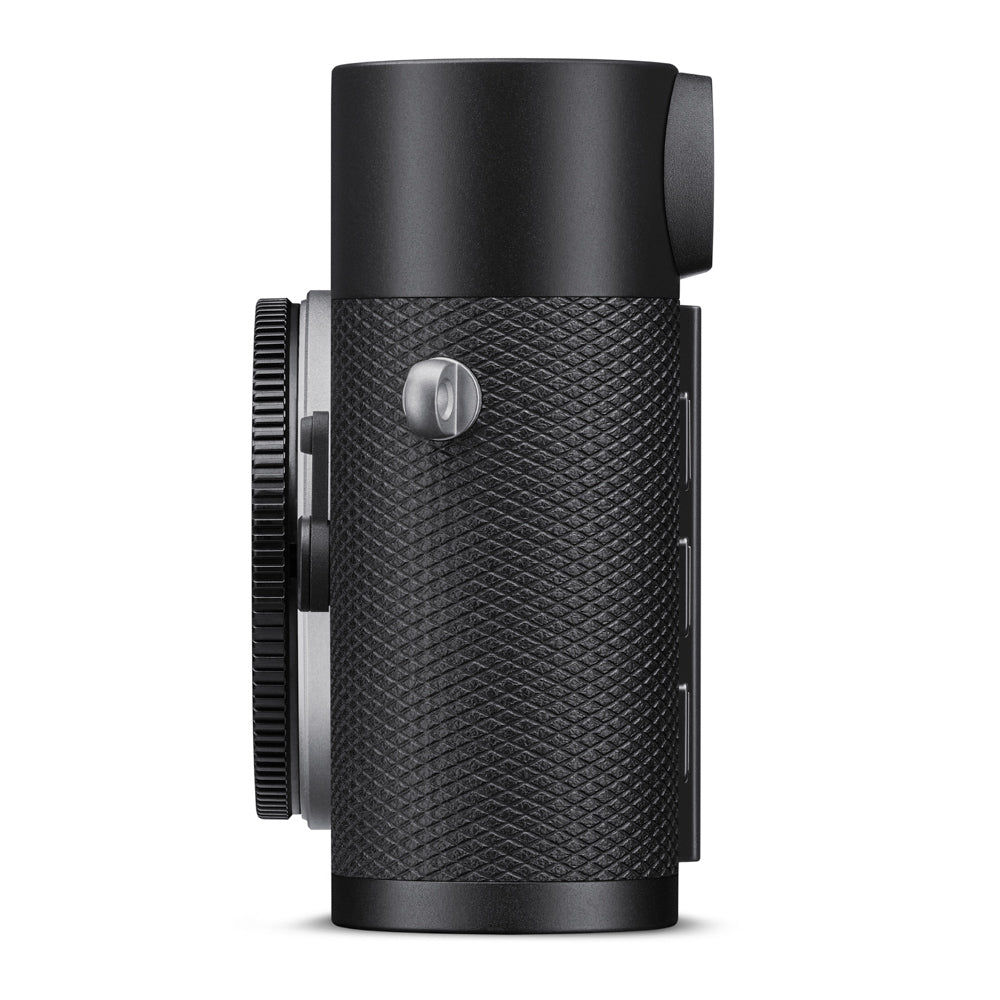

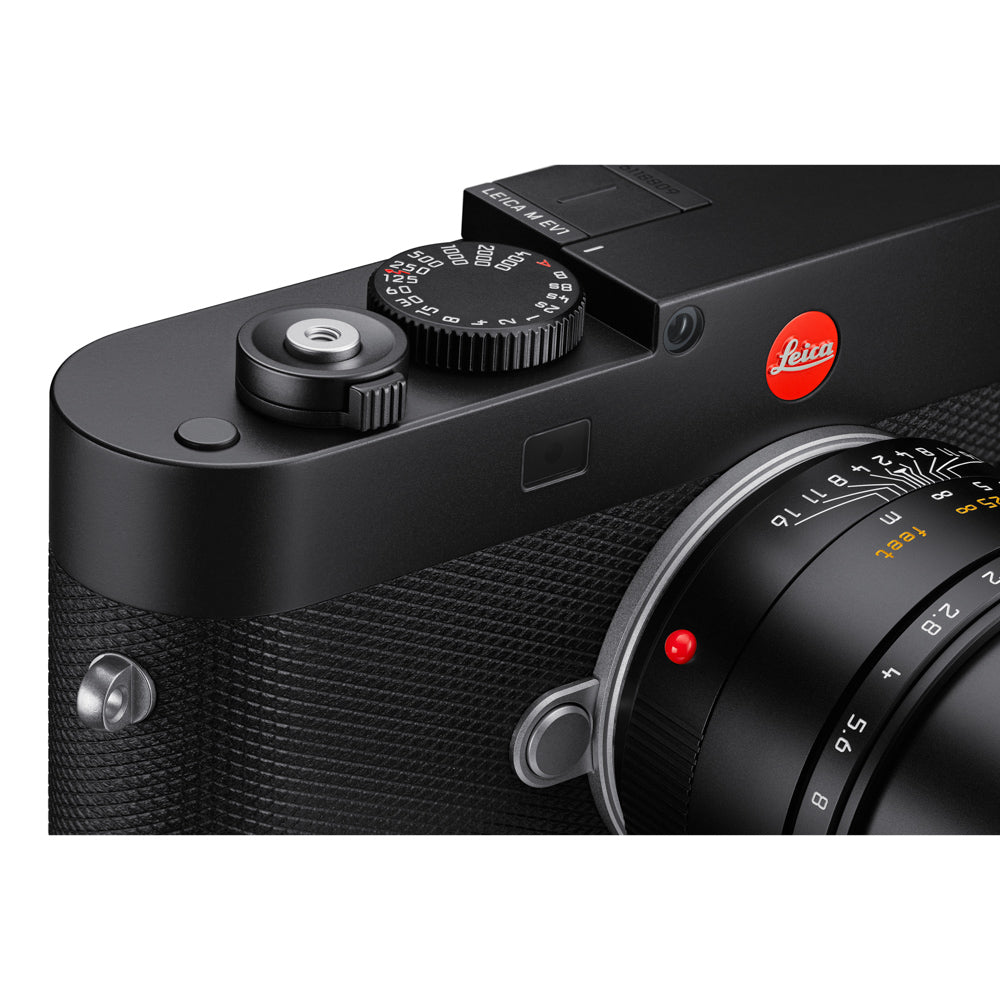

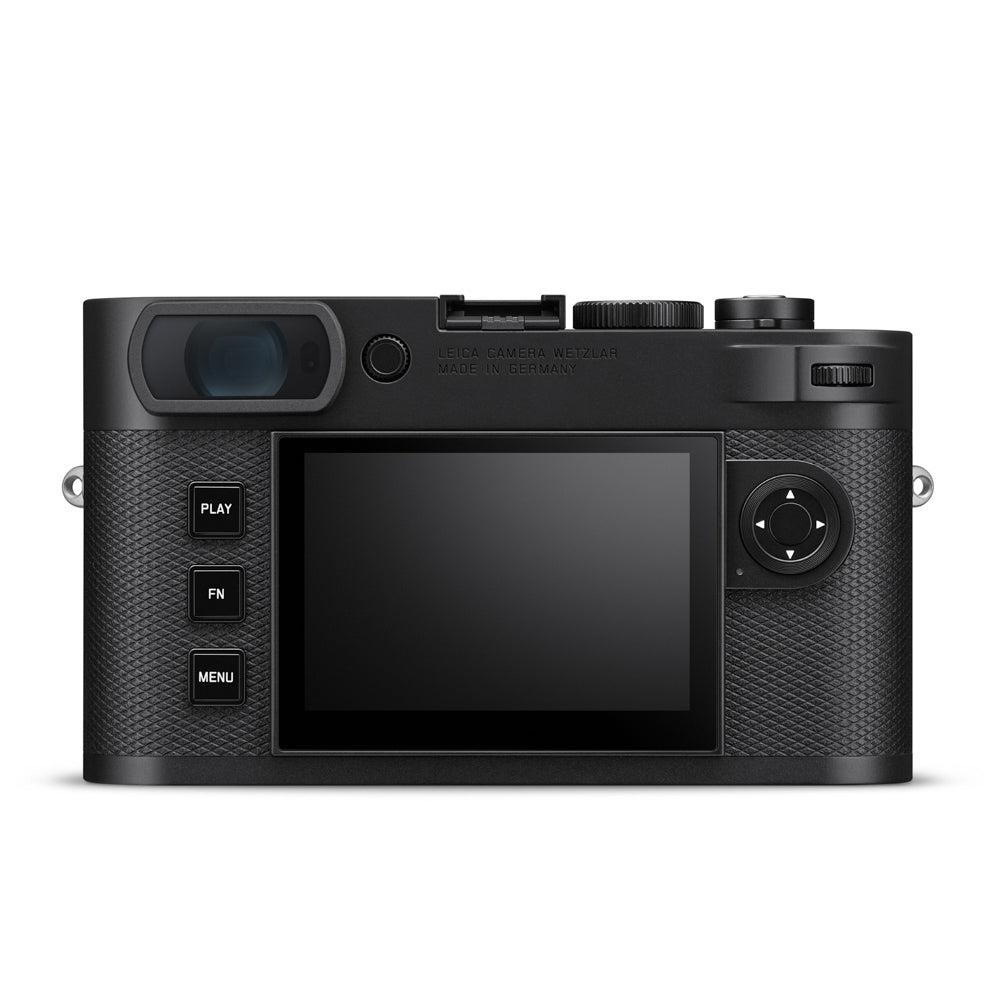

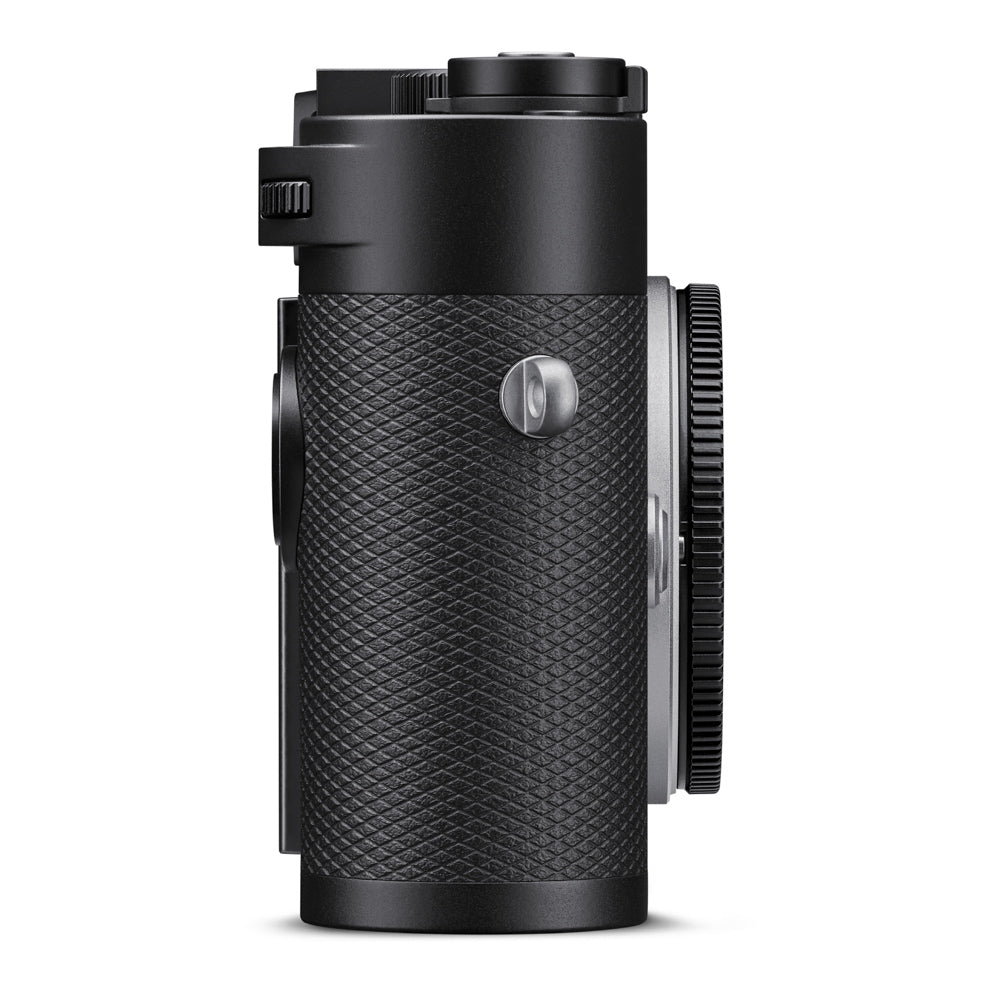

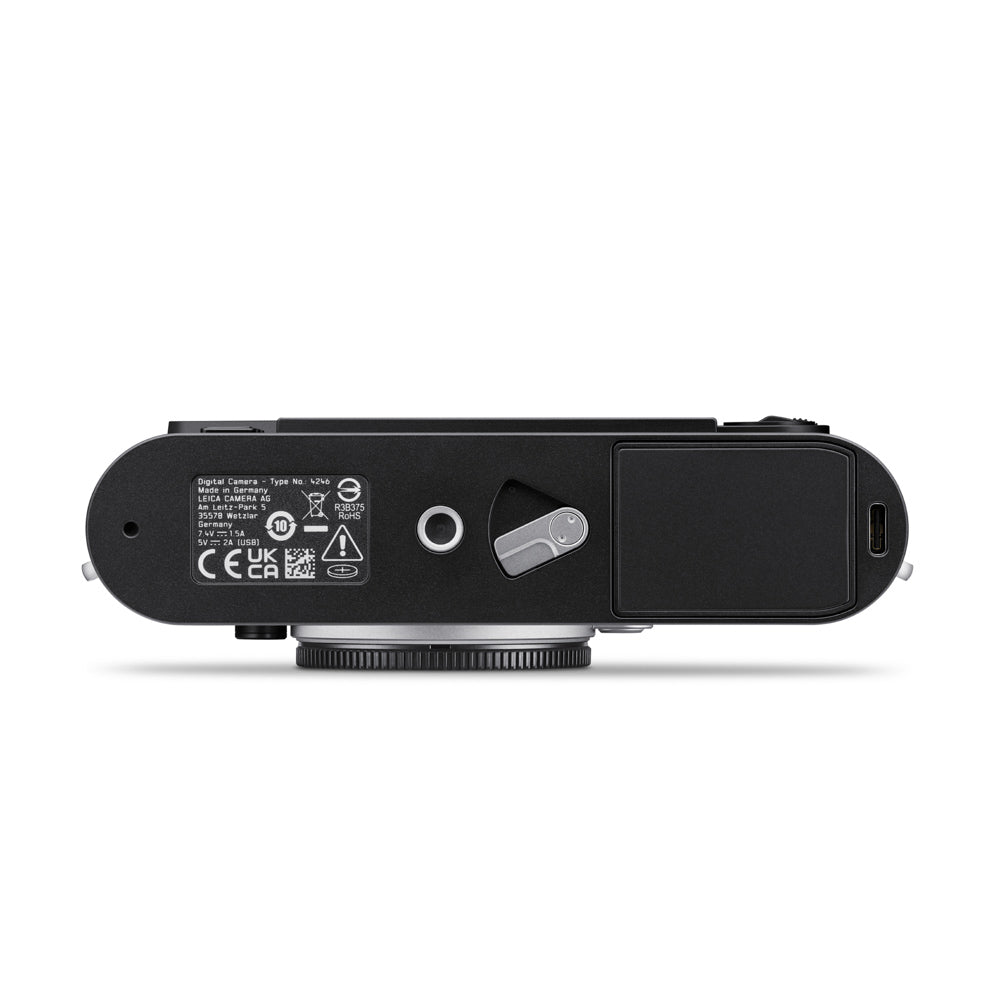

Leica M EV1

SKU: 20229

$8,995

U.S. availability of the Leica M EV1 will be temporarily postponed pending completion of the FCC listing and publication process – a routine regulatory requirement. Until such time this device is not, and may not be, offered for sale or lease, or sold or leased in the United States. This device cannot be delivered to end users, be displayed, or operated in the United States until the device receives certification from the FCC. Leica USA will share an update once the new U.S. release timeline and rescheduled in-store event dates are confirmed. The product will launch as scheduled in all other regions.

Notify Me

Sign Up to Get Notified

Description
Key Features
Tech Specs

The Leica M EV1 combines the traditional values of the M-System with the advantages of an integrated electronic viewfinder (EVF). The diopter compensation and practical focus assists facilitate precise manual focusing – in particular when using the fast Leica Summilux and Noctilux lenses with very shallow depths of field as well as with ultra wide-angle, telephoto, and macro lenses.

The brilliant viewfinder shows the image exactly as it will be when the shutter snaps – in line with the lens used, focal length, and focus distance. All the camera settings are readily visible, without having to take the camera away from your eye. For optimum control when focusing and maximum creative freedom when composing images. The Leica M EV1 is equipped with an outstanding 60 MP full-frame sensor and, just like its sister models – the M11-D and M11-P – includes groundbreaking Content Credentials technology, which reliably verifies the origin of an image.
- Compact, digital system camera
- Integrated 5.76 MP electronic OLED viewfinder
- Focus assist for easy manual focusing
- Diopter compensation from -4 to +2 diopters
- 60 MP BSI CMOS full-frame sensor with Triple Resolution Technology
- 64 GB internal memory
- Timeless, iconic design with an elegant leatherette covering featuring a diamond pattern
- Convenient connectivity with the Leica FOTOS App

Designation	Leica M EV1
Camera type	Full-frame system camera
Type No.	4246
Order No.	20 229 (EU/US/CN), 20 233 (JP), 20 234 (ROW)
Buffer memory	3 GB DNG™: 15 shots JPG: > 100 shots
Storage medium	UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card (SDXC cards up to 2 TB), internal memory: 64 GB
Material	Full-metal housing made of magnesium and aluminum, leatherette cover
Lens mount	Leica M bayonet with additional sensor for 6-bit encoding
Operating conditions	0°C to +40°C
Interfaces	ISO accessory shoe with additional control contacts for Leica flash units and USB 3.1 Gen1 Type C
Tripod thread	A 1⁄4 DIN 4503 (1⁄4”) with stainless steel in the base
Dimensions	138.8 mm × 80.3 mm × 38.45 mm
Weight	approx. 484 g/402 g (with/without battery)
Sensor size	BSI CMOS sensor, pixel pitch: 3.76 µm, 35 mm: 9528 x 6328 pixels (60.3 MP)
Processor	Leica Maestro series (Maestro III)
Filter	RGB color filter, UV/IR filter, no low-pass filter
File formats	DNG™ (raw data, loss-free compression), DNG + JPG, JPG (DCF, Exif 2.30)
Image resolution	DNG™ L-DNG 60.3 MP 9528 x 6328 pixels M-DNG 36.5 MP 7416 x 4928 pixels S-DNG 18.4 MP 5272 x 3498 pixels JPG L-JPG 60.1 MP 9504 x 6320 pixels M-JPG 36.2 MP 7392 x 4896 pixels S-JPG 18.2 MP 5248 x 3472 pixels
	The entire sensor surface will always be used irrespective of format and resolution. Digital Zoom 1.3x and 1.8x available (always based on L-DNG or L-JPG)
File size	DNG™ L-DNG approx. 70–120 MB M-DNG approx. 40–70 MB S-DNG approx. 20–40 MB JPG L-JPG approx. 15–30 MB M-JPG approx. 9–18 MB S-JPG approx. 5–9 MB JPG: depending on resolution and image content
Color depth	DNG™: 14 bit, JPG: 8 bit
Color space	sRGB

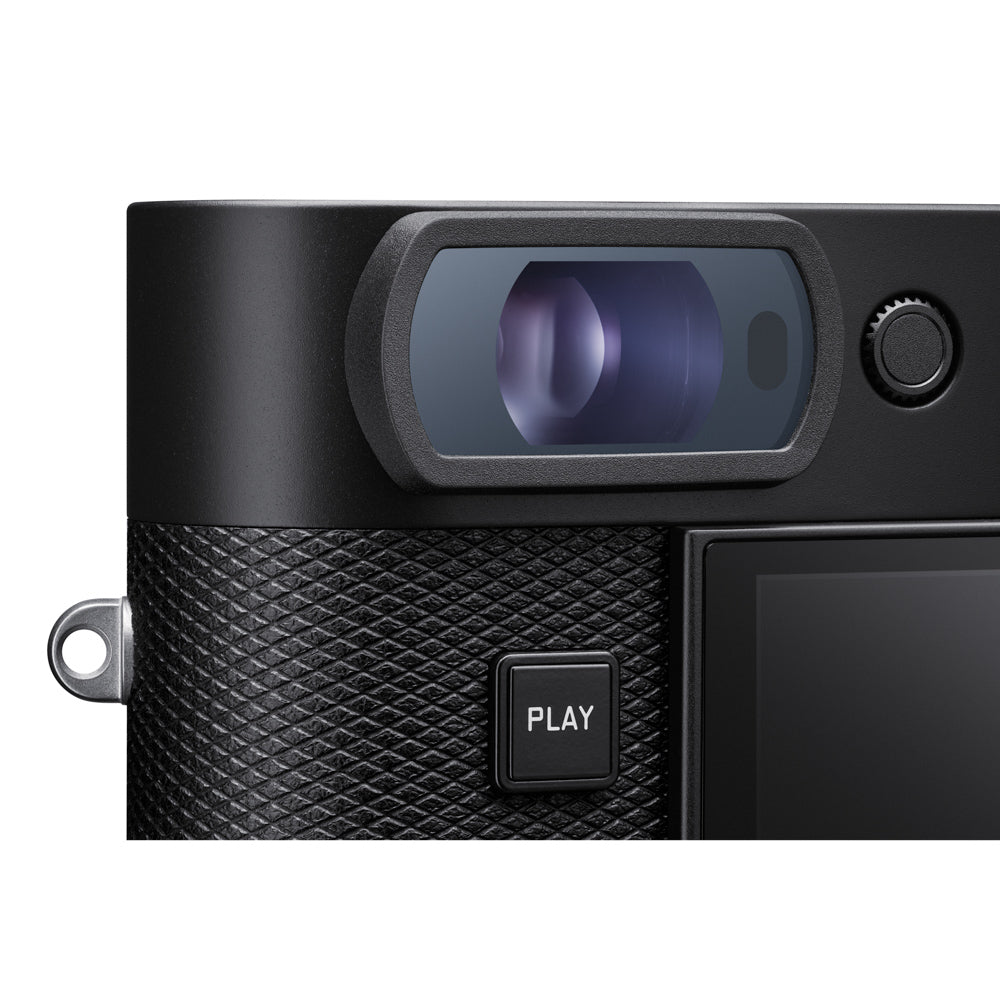

Viewfinder (EVF)	Resolution: 5,760,000 dots, 60 fps, magnification: 0.76x, frame coverage: 100%, exit pupil position: 20.75 mm, setting range -4/+2 dpt, with eye sensor for automatic switchover between viewfinder and LCD panel
LCD panel	2.95” (Active Matrix TFT), Gorilla Glass, 2 332 800 dots, format 3:2, touch control available
Shutter type	Electronically controlled focal plane shutter and electronic shutter function
Shutter speeds	Mech. shutter: 60 min to 1⁄4000 s Electro. shutter function: 60 s to 1⁄16000 s Flash Synch: up to 1⁄180 s Optional noise reduction via additional “dark frame” (can be disabled)
Shutter button	Two-stage (Step 1: activation of the camera electronics including exposure metering and exposure lock, Step 2: release)
Self-timer	Delay time: 2 s or 12 s
Drive Mode	Single Low Speed Continuous (3 fps) High Speed Continuous (4.5 fps) Interval Shooting Exposure Bracketing
Focus mode	Manual (focus assist functions Magnification and Focus Peaking available)
Exposure metering	TTL (exposure metering through the lens), with working aperture
Metering principle	Exposure metering occurs via the image sensor for all exposure metering methods
Exposure metering methods	Spot, Center-Weighted, Multi-Field, Highlight-Weighted
Exposure modes	Aperture-priority mode (A): automatic shutter speed control with manual aperture preselection Manual (M): manual setting for shutter speed and aperture
Exposure compensation	±3 EV in 1⁄3 EV increments
Automatic bracketing	3 or 5 frames, graduations between shoots up to 3 EV, in 1⁄3 EV increments, additional optional exposure compensation: up to ±3 EV
ISO sensitivity range	Auto ISO: ISO 64 (native) to ISO 50 000, also available in flash mode Manual: ISO 64 to ISO 50 000
White balance	Automatic (Auto), Default (Daylight - 5200 K, Cloudy - 6100 K, Shadow - 6600 K, Tungsten - 2950 K, HMI - 5700 K, Fluorescent (warm) - 3650 K, Fluorescent (cool) - 5800 K, Flash - 6600 K), manual metering (Gray card), manual color temperature setting (Color Temperature - 2000 K to 11,500 K)
Flash unit connector	Via the accessory shoe
Metering principle	Flash exposure metering occurs via the image sensor for all exposure metering methods
Flash sync time	1⁄180 s, slower shutter speeds available, automatic switchover to TTL linear flash mode with HSS-compatible Leica system flash units if sync time is undercut
Flash exposure metering	Using center-weighted TTL pre-flash metering with Leica flash units (SF 26, SF 40, SF 58, SF 60, SF 64) or with system-compatible flash units, remote controlled flash SF C1
Flash exposure compensation	SF 40: ±2 EV in 1⁄2 EV increments SF 60: ±2 EV in 1⁄3 EV increments Other: ±3 EV in 1⁄3 EV increments
Displays in flash mode	Flash icon: connection of an external flash unit
WLAN	The Leica FOTOS app is required to use the WLAN function. The Leica app is available from the Apple App Store™ or the Google Play Store™. 2.4 GHz/5 GHz* dual band IEEE802.11 a/b/g/n/ac Wave2 WLAN (standard WLAN protocol), encryption method: WLAN-compatible WPA™/WPA2™, access method: infrastructure mode
Regional variant	EU/US/CN JP ROW Wi-Fi 5 GHz* 11a/n/ac: Channel 149–165 (5745–5825 MHz) 11a/n/ac: Channel 36–48 (5180–5240 MHz) - Wi-Fi 2.4 GHz 11b/g/n: Channel 1–11 (2412–2462 MHz)
Bluetooth	Bluetooth v4.2 BR/EDR/LE, BR/DR-channel 1-79, LE-channel 0-39 (2402–2480 MHz)
GPS	Geotagging via Leica FOTOS app using Bluetooth
Menu languages	English, German, French, Italian, Spanish, Portuguese, Russian, Japanese, Traditional Chinese, Simplified Chinese, Korean
Rechargeable battery (Leica BP-SCL7)	Li-Ion (Lithium-Polymer) rechargeable battery, rated voltage: 7.4 V / capacity: 1800 mAh, Charging voltage/current: DC 1000 mAh, 7.4 V, operating conditions: +10°C to +35°C (charging) / +0°C to +40°C (discharged), manufacturer: Fuji Electronics (Shenzhen) Co., Ltd. made in China Approx. 244 shots (based on CIPA standard with LV via LCD panel), approx. 237 shots (based on CIPA standard with LV via viewfinder (EVF))
Charger (Leica BC-SCL7) (optional)	Input: USB-C DC 5 V, 2 A, output: DC 8.4 V, 1 A, operating conditions: +10°C to +35°C
Switching adapter (Leica ACA-SCL7) (optional)	Input: AC 100 V–240 V ~ 50/60 Hz, 0.3 A, output: DC 5 V, 2 A, operating conditions: +10°C to +35°C
USB power supply	When in standby mode or Off: USB charging function When On: USB power supply and intermittent charging
Scope of Delivery	Leica M EV1 • Battery BP-SCL 7 • USB cable, type A-C • Carrying Strap • Quick Start Guide
