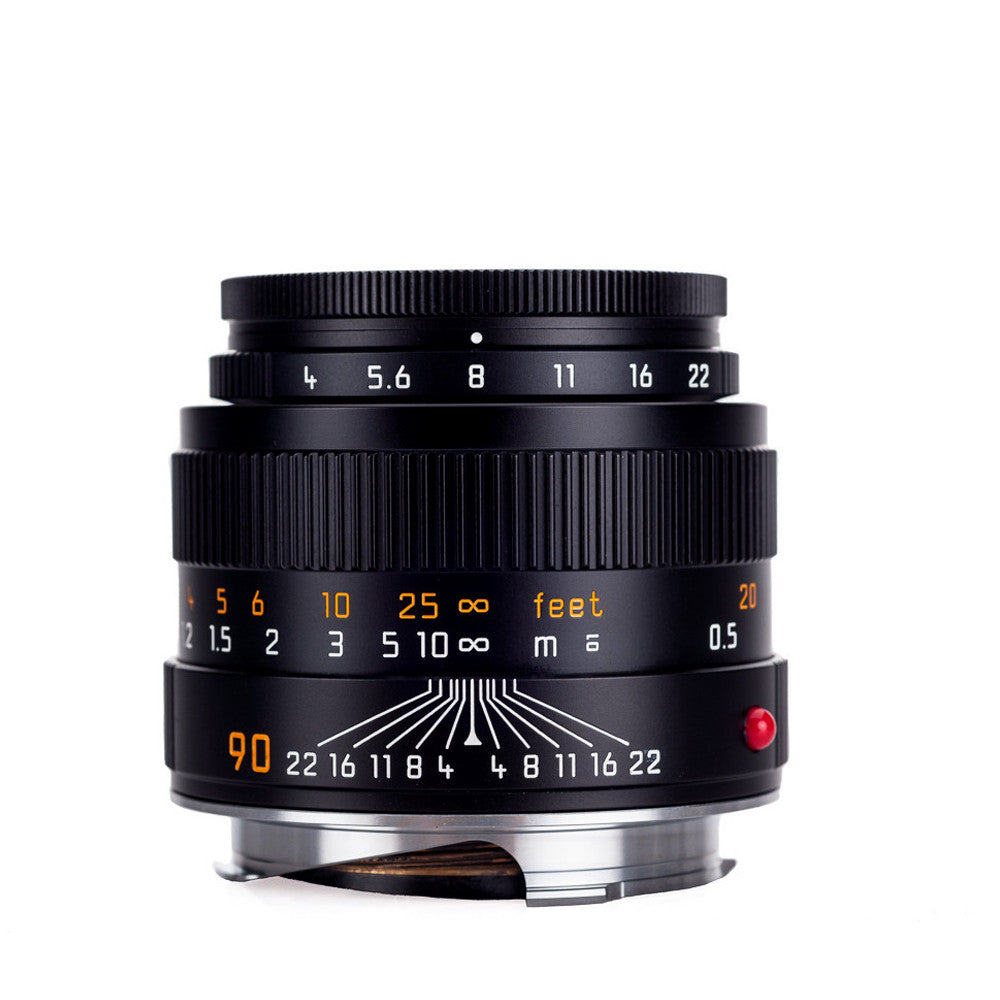

Leica Macro-Elmar-M 90mm f/4 with Macro-Adapter-M and Angle VF

SKU: 799429116293 Mfg Code: 11629

See recommended accessories

With the Leica Macro-Adapter-M this lens permits macro shots to a magnification of 1:3. Without the adapter, it serves as a compact 90 mm telephoto lens. In combination with the Tri-Elmar, this lightweight telephoto lens provides an excellent, universally usable compact system for traveling. When retracted, it is no larger than a 50 mm lens.

Leica Macro Set M

The attractive set includes the Leica Macro-Elmar-M 90 mm f/4 (black anodized) , the Leica Macro-Adapter-M for M 90 mm f/4 and the M Anglefinder. It is a real boon for shooting in the macro mode, as when shooting flowers, insects and other close-up subjects, and is a great portrait lens.

Angle of view (diagonal, horizontal, vertical)	27°, 23°, 15°
Optical design
Number of lenses/groups	4 / 4
Focal length	90.0 mm
Position of entrance pupil	32.3 mm (related to the first lens surface in light direction)
Focusing range	0.77 m to Infinity (with LEICA MACRO-ADAPTER-M: 0.5 to 0.76 m)
Distance setting
Scales	Combined meter/feet graduation
Smallest object field	161 mm x 241 mm (with LEICA MACRO-ADAPTER-M: 72 x 108 mm)
Largest reproduction ratio	1:6.7 (with LEICA MACRO-ADAPTER-M: 1:3)
Aperture
Setting/Function	With click-stops, half values available, manual diaphragm
Lowest value	22
Bayonet	Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models
Filter mount	internal thread for screw-in type filters E39, non-rotating lens mount
Lens hood	separate metal lens hood, can be attached in reverse for storage
Dimension and weight:
Length	59 mm (lens extended, in working position), 41 mm (lens collapsed, in storage position)
Largest diameter	52 mm
Weight	Weight: approx. 240 g (black anodized aluminium version), 320 g (silver chrome-plated brass version)
