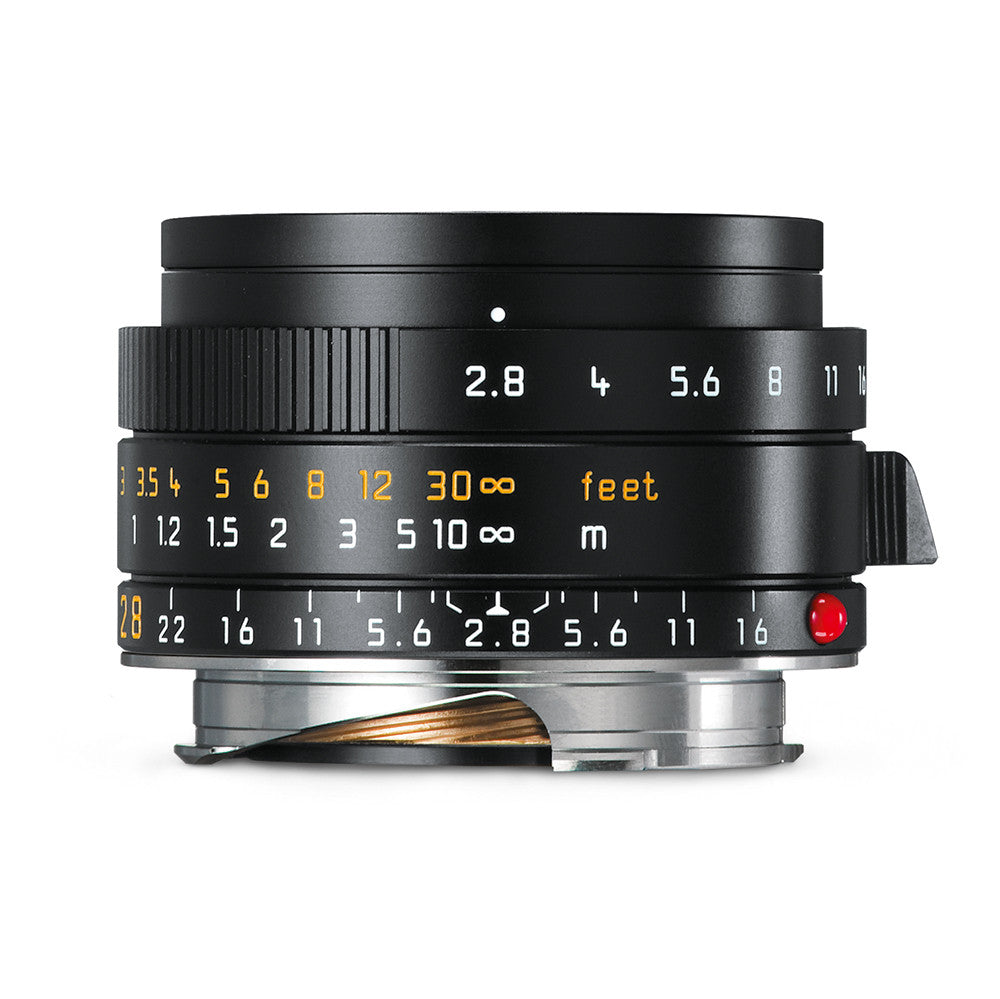

Leica Elmarit-M 28mm f/2.8 ASPH, black

SKU: 799429116774   Mfg Code: 11677

$2,795

Out of Stock

See recommended accessories
  • The Elmarit-M 28mm f/2.8 ASPH is the most compact lens in the entire portfolio of Leica M-Lenses. This is made possible by the use of an aspherical lens element, which enables particularly compact lens construction and a weight of only 180 grams. This makes the Elmarit-M a firm favourite with street and reportage photographers. Every scene can be composed to perfection thanks to a rectangular, full-metal lens hood with a screw mount that can be replaced by a screw-in protector ring when not in use.

    This lens is optimised for digital photography and has significantly reduced image field curvature in comparison to the previous model. This results in considerably improved image performance with high resolution and extremely impressive reproduction of details. The Elmarit-M 28mm f/2.8 ASPH is practically distortion-free from infinity to its closest focusing distance of 0.7 meters, and provides an exceptionally clear view through the viewfinder of M cameras.

    • Ideal for street photography
    • The most compact lens in the entire portfolio of M-Lenses, making it ideal for street, reportage and travel photographers
    • Optimized for digital photography with its reduced image field curvature, creating virtually distortion free wide-angle pictures
  •  Angle of view (diagonal, horizontal, vertical)
    for 35 mm (24 x 36 mm) 75°, 65° , 46°
    for M8 digital (18 x 27 mm) 60°, 51° , 36°
    Optical design
    Number of lenses/groups 8 / 6
    Focal length 28 mm
    Position of entrance pupil 11.8 mm
    Focusing range 0.7 m to infinity
    Distance setting
    Scales Combined meter/feet graduation
    Smallest object field 533 x 800 mm
    Largest reproduction ratio 1:22
    Aperture
    Setting/Function With click-stops, half values available, manual diaphragm
    Lowest value 22
    Bayonet Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models
    Filter mount Internal thread for screw-on filters size E39
    Lens hood Screw type (supplied)
    Dimension and weight
    Length 30.7 / 49.4 mm (without / with lens hood)
    Largest diameter approx. 52 mm
    Weight approx. 175 g
