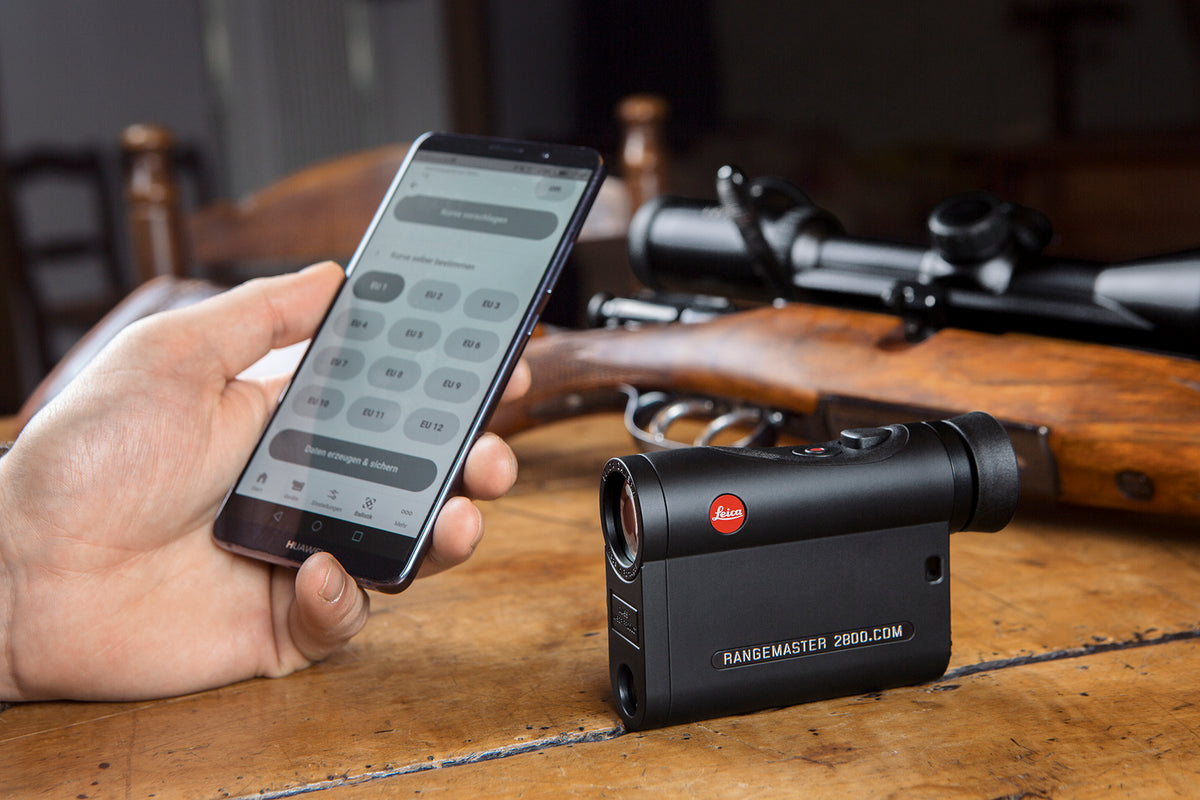

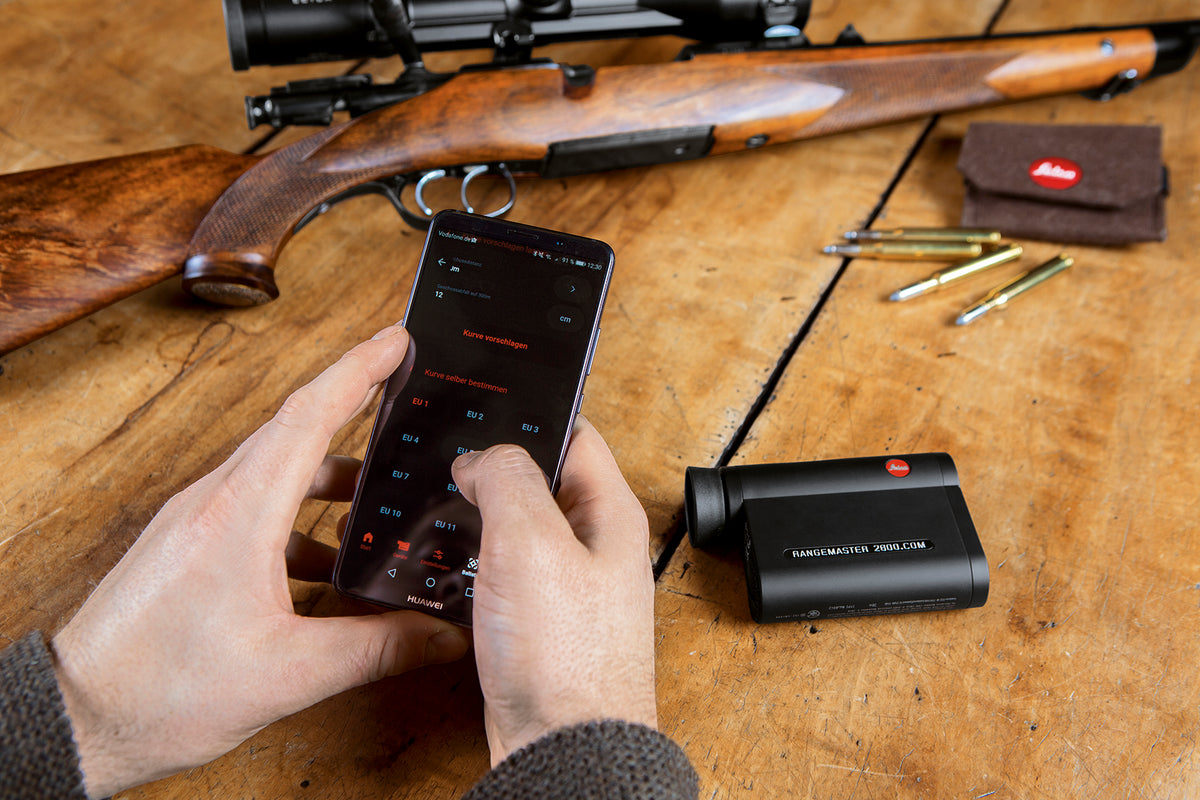

Leica Rangemaster CRF 2800.COM Bluetooth Compact Rangefinder
SKU: 799429405066 Mfg Code: 40506
Make sure your shot is on target by connecting Leica’s latest rangefinder with integrated ballistic solution to your smartphone or Kestrel 5700 Elite weather meter.
The revolutionary new Leica Rangemaster CRF 2800.COM is the first dedicated compact laser rangefinder capable of precise distance measurements up to 2,800 yards/2,600 meters and benefits from easy smartphone programming via Bluetooth and the new Leica Hunting App. This means Leica ABC® Ballistics can be customized directly through a smartphone as well as a Kestrel Elite weather meter.
The Leica Rangemaster CRF 2800.COM offers hunters and long-range shooters three ballistic outputs in addition to the measured distance. Depending on the ballistic data required, when using Leica’s ballistic program, the CRF2800.COM provides either hold over value in inches, centimeters or comeups in MOA or MILs to 1,000 yards, or equivalent horizontal range (EHR) to 1,200 yards/1,100 meters. When connected with the Kestrel 5700 Elite with Applied Ballistics, the CRF2800.COM will display both elevation and windage corrections as far as the range finder can read.
Data is shown on the integrated LED display, which automatically adjusts to ambient lighting conditions. The scan mode measures environmental conditions and target distance every 0.3 seconds. Between 10
and 200 yards, the CRF2800.COM displays distance to the tenth of a yard, an especially useful feature for archers. Thanks to its compact size and weight, it can easily be carried in a shirt pocket. With the CRF 2800.COM, Leica offers a product with a complete new operation concept, the Leica Hunting App, which raises the ease of use to a new level.
Magnification 7x Front lens diameter 24mm Exit pupil 3.4mm Twilight factor 13 Field-of-View at 1,000y 115 y Eye relief 15 mm Objective angle of view 6.6° Coating Aqua-Dura lens coating Diopter compensation ±3.5 EHR Range 10 to 2,800 yards / 10 to 2,600 m 10 to 1,200 yards / 10 to 1,100 meters Ballistic output
10 yds to 875 yards / 10 m to 800 m when using integrated Leica ballistic curves 1-12
10 yds to 1,000 yds / 10m to 910 m using custom curve via Leica App
10 yds to 2,800 yds / 10 m to 2,600 m when using Kestrel 5700 Elite
Minimum distance 10 meters Measuring accuracy 10 up to 200 yds/m ± 0.5 yds/m 200 yds/m up to 400 yds/m ± 1.0 yds/m 400 up to 800 yds/m ± 2.0 yds/m over 800 yds/m ± 0.5% Read Outs LED display with four digits and symbols, ambient light controlled brightness control Eyepeice for eyeglass wearers Yes Eyecup turn down rubber eyecup Prism system Roof prism with phase correction coating P40 Coating AquaDura lens coating® Meter/Yard Selector yes, optionally yards/inches or meter/centimeter Measuring Time approx. 0.3 seconds Measuring Mode Scanning mode, single measurements Laser Eye-safe invisible laser according to EN and FDA class 1 Laser Beam Divergence approx. 0.5x1.2 mrad Interface Bluetooth® 4.1 Smarphone App Leica Hunting App Minimum Software Requirements for Leica Hunting App iOS version 9 and Android version 6 Housing carbon-fiber reinforced plastic Watertightness Watertight to a depth of 3.2 feet / 1 meter Temperature (function) -20 to 55 deg C Temperature (storage) -40 to 85 deg C Battery 3V Lithium Typ CR2 Battery life approx. 1,700 measurements at 68° F / 20° C Weight 6.7 ounces / 189 g incl. battery Dimensions 4.5 x 2.25 x 1.25 in / 113 x 75 x 34 mm
