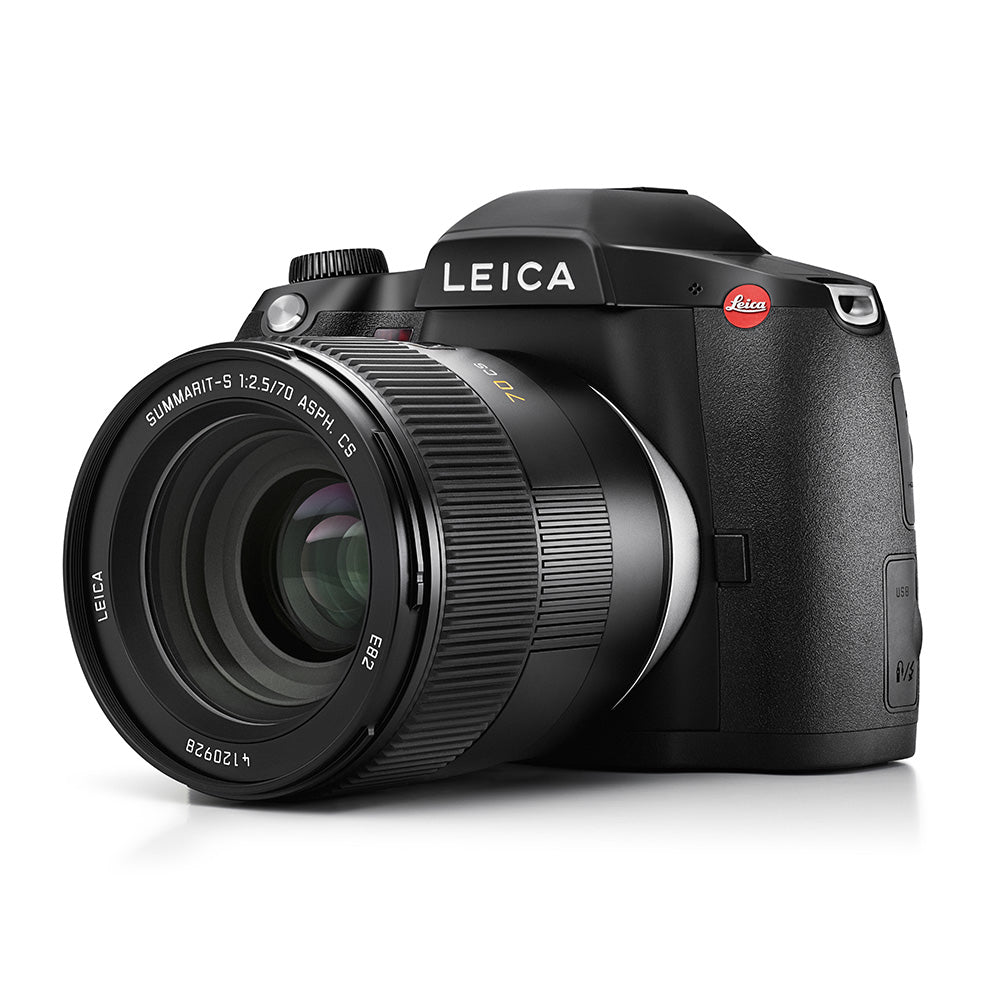

Leica S3

SKU: 799429108325   Mfg Code: 10832

$18,995

Coming Soon - Pre-Order Now

See recommended accessories
  • New: 64 megapixel dual-gain sensor, new Color Filter Array for most accurate color, Full-frame medium format Cine4K video, 8 min long exposure, ISO 100-50,000

    For a complete overview of the Leica S3 with sample images from Patagonia, check out Red Dot Forum.

    The much anticipated Leica S3 medium format camera, first announced at Photokina, is now shipping. The new flagship from Leica packs a brand new 64 megapixel 30 x 45 mm medium format sensor, expanded 4K video capabilities and some of the most dramatic imaging potential from a camera system – for use both in the studio and out in the field. Capture the world with the storied Leica look in the highest fidelity possible.

    Leica S-Lenses are the highest quality optics in the medium format world, and with fast autofocus and burst shooting, the S3 is a system that can excel in just about any application. High-speed lenses such as the Leica Summicron-S 100 f/2 ASPH encapsulate the benefits of the S-System – the Leica look and falloff from incredible sharpness to beautifully blurred bokeh that is a signature style of S-cameras, now at an even higher resolution with the S3. With 16 lenses to choose from, some equipped with Central Shutters for high-speed flash sync, the Leica S3 is equipped to meet the needs of any pro in need of a workhorse system.

    New image sensor and new processor for increased quality and higher speed

    Among the most remarkable innovations in the Leica S are the new Leica CMOS sensor and Maestro II image processor. Thanks to these, it has been possible to enormously increase the speed and versatility of the S-System and raise it to a level that was previously unheard of in the medium-format segment. With a burst frequency of up to 3.5 frames per second, full-HD video in full-frame medium-format sensor size and 4K video recording, fast Live View mode and exceptional imaging quality at all ISO settings, the Leica S (Type 007) once again documents its status as the benchmark in the medium-format segment. The 2 GB buffer memory ensures smooth shooting of rapid sequences and, despite its more than doubled burst rate capability, the new focal plane shutter in the camera offers a further significantly increased service life of at least 150,000 cycles.

    Fast, predictive autofocus module for subjects in motion

    The revised autofocus system brings not only higher speed, but also more reliable and more precise focusing. To ensure optimum sharpness and precise tracking of moving subjects, the Leica S (Type 007) features a predictive autofocus mode: the camera registers the motion of the subject and determines the distance to it at the moment of exposure. In combination with its fascinating imaging quality and high burst rate, the Leica S sets entirely new standards for professional medium-format action photography.

    Integrated WLAN, GPS system and leveling aid for precision and uncomplicated workflows

    The Leica S is currently the only professional camera to feature an integrated GPS module that can record the geographical positioning data of the momentary location in the EXIF data of the image file whenever needed, as well as automatically set the local system time. On the basis of the coordinates, appropriate software installed on a computer, for instance the Adobe Photoshop Lightroom® package supplied with the camera, can display the precise location of each image on a map and register the corresponding place names as search keys for archived photos. The new dual-axis leveling aid (spirit level) displays the precise horizontal and vertical orientation of the camera in the viewfinder to allow photographers to align the subject with absolute precision and without any need for external aids. In combination with an app for smartphones and tablets, the camera’s integrated Wlan module enables remote control of the camera and remote image assessment in Live View mode to provide simpler and intuitive workflows.

    Optimized handling

    With a resolution of 921,600 pixels, a 3" diagonal, full sRGB color space and increased contrast and brightness, the display allows optimum assessment of subjects and images in every situation. The glass plate protecting the monitor is manufactured from tough and scratch-resistant Corning Gorilla Glass®.

    The panel on the top deck of the Leica S has been redesigned as a trans-reflective display with a larger area and optimized information content to ensure optimum legibility – even in bright sunlight. Two new control elements on the top deck enable direct selection of Live View mode and the activation of video recording.

    Lifespan

    Leica S-Cameras are designed and constructed for many years of daily use. The new stainless-steel bayonet guarantees even greater endurance under even the toughest conditions. The Leica S (Type 007) possesses all the proven quality characteristics of the S-System. These include the large 30 × 45 mm Leica Pro Format sensor and its micro-lens layer that guarantees consistently uniform brightness from corner to corner. The camera and S-Lenses are extremely ruggedly built and sealed against environmental influences like dust and rain. The system’s unique dual-shutter concept offers photographers the choice of using the camera’s fast focal plane shutter with speeds up to 1/4000 s or the electronically controlled central shutter of the CS lenses that allows flash sync at all shutter speeds up to 1/1000 s. The ten currently available Leica S-System lenses, six of which are also available with a central shutter, offer photographers all important focal lengths and a first-class tilt/shift lens. At the same time, numerous third-party medium-format lenses can be mounted on the Leica S with adapters: for instance the Leica S-Adapter H for Hasselblad H lenses and the Leica S-Adapter C for Contax 645 lenses, both of which provide full compatibility – including autofocus, central shutter control (Hasselblad) and automatic aperture control.

    The Leica S is uncompromisingly built for maximum dependability in use and also features details like cable connections with strain relief, separate slots for CompactFlash and SD memory cards, further optimized energy efficiency and a scratch-resistant display. The Leica S therefore stands alone as an ideal and extremely reliable tool for achieving maximum quality results in the studio and on location under even the most unfavorable conditions.

    Read More...
  • Camera Type: Digital medium-format single lens reflex camera for use with Leica S-Lenses.
    Image Sensor Type: Leica CMOS sensor with micro-lens layer
    Size: 30 × 45 mm (Leica Pro Format)
    Aspect Ratio: 2:3
    Resolution: 64 megapixels
    Dynamic Range: Up to 15 stops
    White Balance: Presets: Daylight, cloudy, shade, incandescent, fluorescent, HMI,halogen warm, halogen cool, flash, tungsten, gray card, gray card Live View, automatic, color temperature (Kelvin)
    Low-pass Filter / IR Filter: No (for maximum detail resolution/sharpness)
     / on sensor

    ISO Sensitivity:

    ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200, ISO 6400, ISO 12500, ISO 25000, ISO 50000, auto ISO

    FOCUSING


    Type

    Predictive TTL autofocus with central cross sensor and phase detection

    AF Modes: AFs (single) = focus priority, AFc (continuous) = predictive focus tracking, MF (manual), manual override possible at any time
    AF Lock: Shutter release or five-way joystick
    MF: Via lens with electronic focusing aid
    EXPOSURE SETTINGS

    Exposure Metering:

    Exposure metering through the lens (TTL)

    Metering Modes:

    Multi-segment (five fields), center-weighted, selective/spot metering (3.5% of image frame)

    Exposure Control:

    Program AE (with manual shift) (P), shutter speed priority (T), aperture priority AE (A),manual exposure control (M)

    Exposure Compensation: (± 3 EV in half-EV increments

    Exposure Bracketing:

    Three/five exposures (automatic/manual), half, one, two or three stops
    SHUTTER


    Shutter:

    Focal plane shutter, central shutter with Leica CS lenses

    Drive Modes:

    Single, continuous, interval, self-timer 2 s /12 s (with mirror pre-release)

    Shutter Speeds: 2 minutes (depending on ISO setting) to 1/4000 s, in half-stop increments

    Burst Rate:

    Up to 3 fps



    Self Timer: Two- or 12-second delay with mirror pre-release
    Mirror Pre-Release:

    Yes

    Live View Refresh Rate

    Up to 60 fps

    Focusing:

    Manual, AF metering field shift to any part of the viewfinder image

    Exposure Control:

    Multi-segment (five fields), center-weighted, selective/spot (linked to AF metering field)

    Exposure Simulation:

    Yes

    Miscellaneous:

    Histogram with clipping, focus peaking, leveling aid (horizon), exposure information

    VIDEO



    Video Recording:

    4K cinema and full-HD in Leica ProFormat (large format video)

    Resolution:

    Full-HD: 1920 x 1080 p, 4K cinema: 4096 x 2160 p

    Frame Rate:

    Full-HD: 24, 25, 30 fps, 4K cinema: 24 fps

    File Format:

    MOV (motion JPEG)

    Color Subsampling:

    4:2:2

    Exposure Control:

    Manual and automatic

    Audio Level:

    Manual and automatic

    Audio (onboard):

    Integrated stereo microphone. 48 kHz, 16 Bit

    Audio (External):

    Audio-in (3.5 mm stereo jack), Audio-out (3.5 mm stereo jack), with Leica Audio-Adapter-S

    Time code:

    Internal

    Miscellaneous:

    Focus peaking, clean uncompressed full-HD (1080p) 8-Bit, 4:2:2, HDMI video stream for recording on off-camera HDMI recorders

    VIEWFINDER


    Type:

    Pentaprism viewfinder with high-eyepoint eyepiece, illuminated LCD bar

    Magnification:

    0.87x (with 70 mm lens at infinity, 0 dpt.)

    Viewfinder Coverage: Approx. 98%
    Diopter Compensation: –3 to +1 diopters
    Focusing Screens:

    Exchangeable: standard focusing screen with AF cross hairs and spot marking (supplied with the camera), focusing screen with engraved grid, microprism focusing screen

    Viewfinder Information:

    Levelling aid (horizon), shutter speed, exposure control mode, aperture, flash status, exposure compensation scale, flash sync display, focus indicator, exposure compensation, remaining exposures (on storage medium), buffer memory, error messages, ISO settings display

    DISPLAY PANELS

    Monitor Screen:

    3-inch TFT LCD display

    Resolution:

    921,600 pixels

    Color Space:

    sRGB, 16 million colors

    Oblique viewing Angle:

    170°

    Display Cover Glass:

    Corning®Gorilla®Glass

    Top-Deck Display Panel:

    Monochrome LCD display
    SHOOTING

    Drive Modes:

    Single, continuous, interval, self-timer 2s with mirror pre-release, self-timer 12s with mirror pre-release

    DATE RECORDING


    Image Data Formats:

    Lossless compressed DNG, DNG + JPEG

    Buffer Memory Capacity:

    2 GB buffer memory, up to six lossless compressed DNG image files, JPEG no limit (dependent on memory card type, shutter speed and ISO setting)

    Storage Media:

    SD card (SDXC), CF card (UDMA7), external (PC)

    FLASH

    Connections:

    Lemo® flash sync socket, hot shoe with center and control contacts

    Flash Synchronization with Focal Plane Shutter:

    1/125 s

    Flash Synchronization with Central Shutter (leaf shutter):

    Up to 1/1000 s

    High-Speed Sync HSS Function:

    up to 1/4000 s (with compatible external flash units)

    Flash Triggering Point:

    Sync on first or second curtain (FPS)

    MISCELLANEOUS

    Playback Mode:

    Full image, histogram with clipping, focus peaking, exposure information

    GPS:

    Yes, integrated

    WLAN:

    Integrated in camera body (remote camera control and image assessment by smartphone app), IEEE802.11n

    Date/Time:

    Manual or automatic date/time setting with GPS module

    Leveling Aid (horizon):

    Display sensitivity < 1° (at ambient temperatures from 0–40°C)

    INTERFACES

    USB

    Lemo® USB 3.0 SuperSpeed

    HDMI:

    HDMI type C socket

    Audio:

    With Audio-Adapter S (audio-in, audio-out)

    Flash Synchronization:

    Lemo® flash sync socket

    Remote Release:

    Lemo® cable remote release

    WLAN:

    Integrated in camera body

    BODY


    Materials:

    Magnesium body with non-slip rubber armoring. Magnesium top deck, aluminum baseplate.

    Stainless steel bayonet and control elements

    Dimensions:

    160 × 80 × 120 mm

    Weight:

    ~ 1260 g (without battery)

    Dust-proof / Splash-proof Sealing:

    Yes
